Track type Fruit grading machine

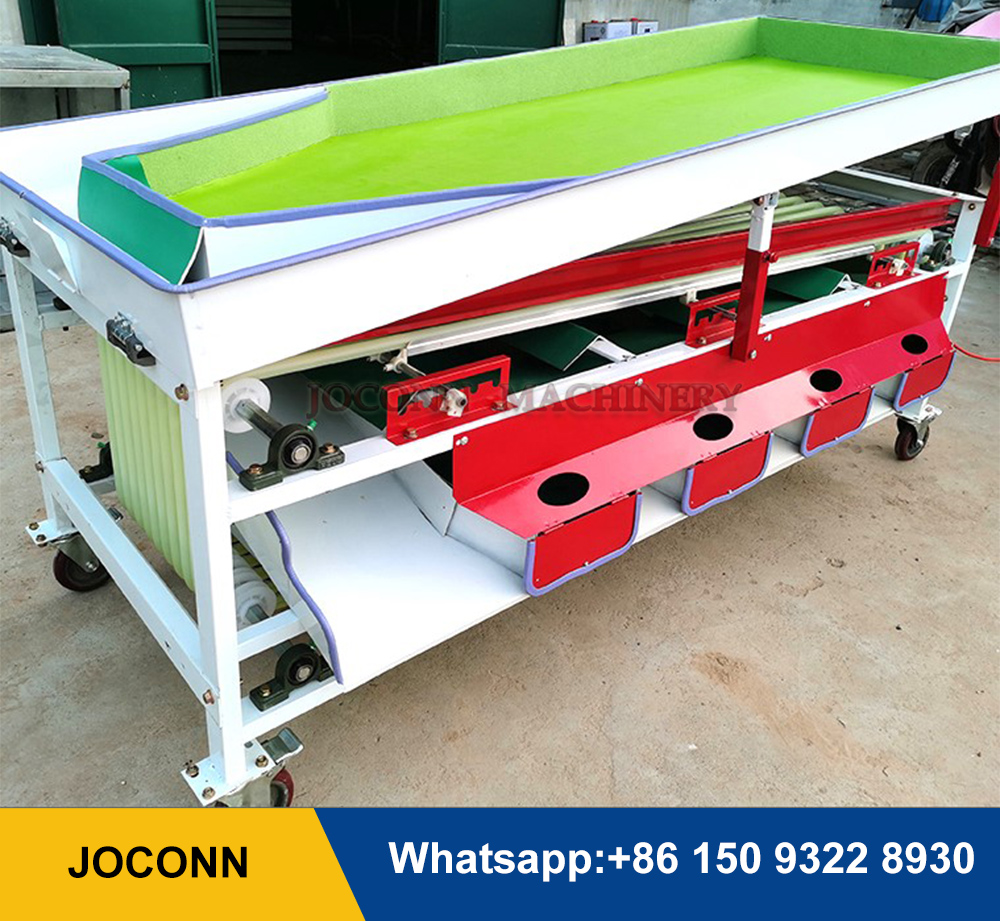

This fruit sorting machine uses the gap size of the conveyor belt to sort the size of small fruits. The gaps are from small to large. Small fruits smaller than the gap size can fall down and fall into the feeding basket of this level. Fruits larger than this gap size continue to be conveyed forward until they fall into the feeding basket smaller than that size. The size is sorted one by one without damaging the fruit. The sorting speed is fast, the fruit is evenly selected, and the grade is fine. Suitable for fruits and vegetables: green dates, red dates, longans, chestnuts, olives, hawthorns, cherry tomatoes, kumquats, longans, lychees, etc.



Power

550W-750W

type

Top-entry/side-entry

voltage

220v

weight

98kg

packing weight

114kg

efficiency

1.2t-1.6t(No accelerator)

Sorting diameter

0.9-4cm

Fruit grade adjustment

5 grade(adjustable)

size

2000*550*700mm/400*550*700mm

material

Carbon steel profile, food grade silicone leatherette,

(can be customized with 201/304 stainless steel)
