  • Screw type manure dehydrator

Screw type manure dehydrator


The solid liquid separator machine is used for dehydration of various residues such as poultry and livestock manure, food residues, biogas pools and other residues, such as pig manure, chicken manure, cow dung, Chinese medicine residue, lees, sewage,dust sludge, and paper pulp,etc. achieving highly resource reuse, wide applications, and stable working performance.




1

Strong water filtration , clean separation, environmentally friendly.

2

Easy maintenance, small footprint, strong power,

3

Automatic operation, low energy consumption, suitable for continuous operation

4

Simple operation: low rotation speed, convenient installation and maintenance, no need to add flocculant, quick investment recycling

5

Good dehydration effect: automatic and simple operation, low energy consumption, greatly improved solid liquid separation and benefits.

6

Various uses in pig manure, chicken manure, cow dung, duck manure, swamp solid fluid separation, industrial field, etc.

7

recycling for field fertilization to improve soil quality. Solid feces can be sold directly, also can be used for fish and shrimp breeding feeds, biogas production, bamboo supplements, earthworms feeding , mushrooms cultivation, and flower gardens planting.


Model

GYFL-180

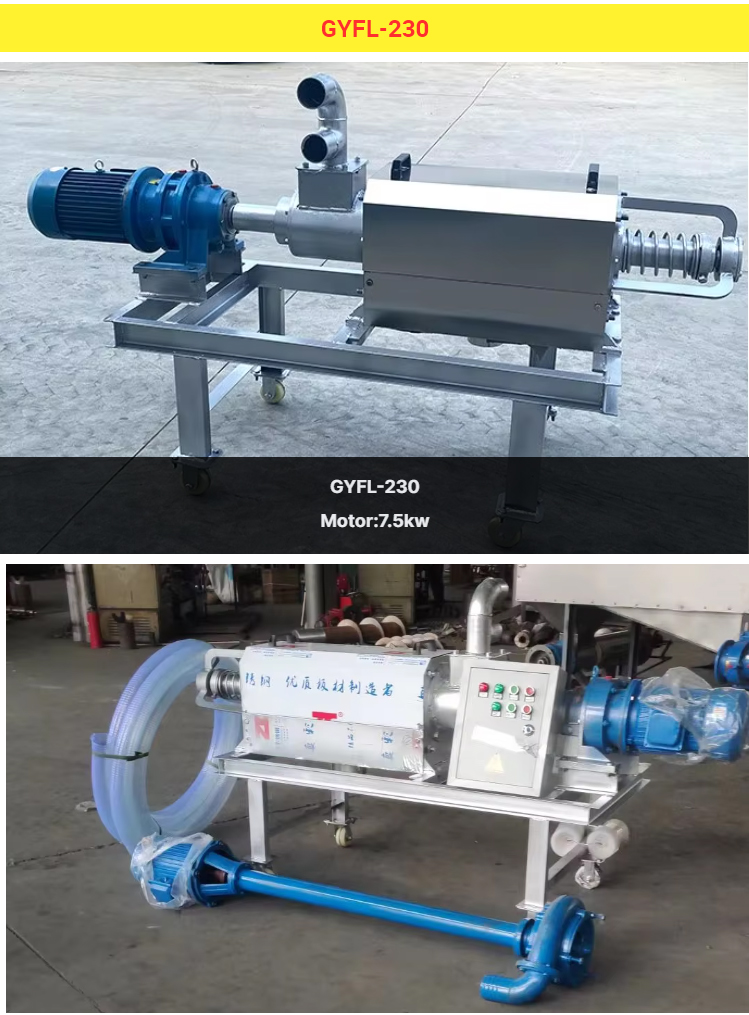

GYFL-230

GYFL-280

Sieve size

Dia180*L600mm

Dia230*L600mm

Dia280*L600mm

Material

stainless steel+carbon steel

Main motor

5.5kw

7.5kw

11kw

Pump power

4kw

Voltage

220v/380v

Inlet size

76mm

Drain size

102mm

Raw manure

20m³/h

25m³/h

35m³/h

Dry manure

5m³/h

7m³/h

15m³/h

Machine weight

210kg

330kg

380kg

Machine size

1900*1300*600mm

1950*1300*600mm

2150*1400*800mm

Packing weight

295kg

420kg

480g

Packing size

1870*620*109mm

1900*620*109mm

1900*620*109mm

Note: one set includes host separator machine, pump, electric box, water pipe, valve
