Wheat rice thresher machine

EMAIL INQUIRY

Wheat rice paddy thresher machine is mainly used for threshing wheat and rice, also can be customized for beans threshing. The machine combines separating, winnowing and screening, which makes the paddy rice wheat, residue, bran and straw cleaned and separated at one time.

This Wheat rice paddy thresher machine has the characteristics of high removal rate and low breakage rate, which can shorten the wheat harvest period and greatly save labor. It is widely used in rural areas, plains, mid-levels, hills and other wheat and rice planting areas, and is very populis very popular among users.ar is very popular among customers.

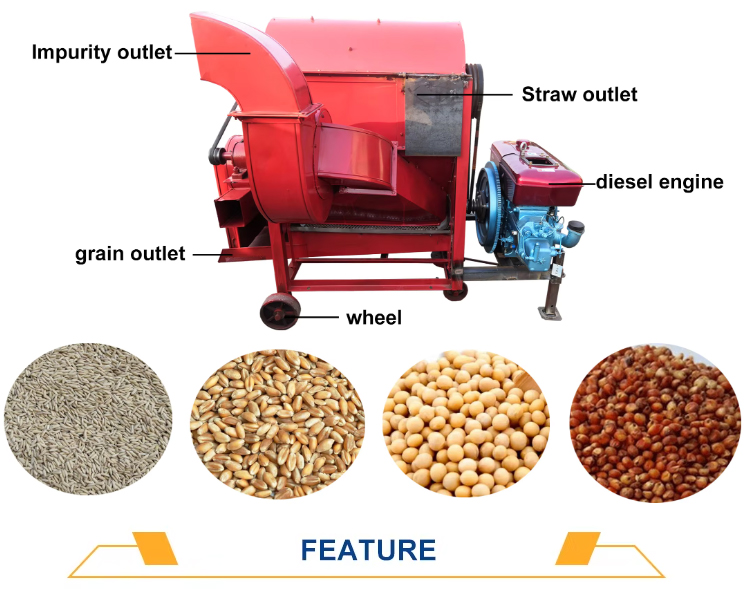

1	The rice, wheat and bean thresher is mainly composed of a feed table, a frame, a concave screen, a drum, a machine cover, a fan, a blower, a motor (or a diesel engine), a vibrating screen, a traction guide device, etc.
2	The bran and debris can be discharged from the machine through the fan. After the wheat and rice grains fall into the bottom slide of the vibrating screen, they flow out from the grain outlet and are manually bagged.
3	The thresher has three forms: motor drive、diesel engine drive、gasoline engine. Users should choose according to their own power equipment when purchasing a thresher.

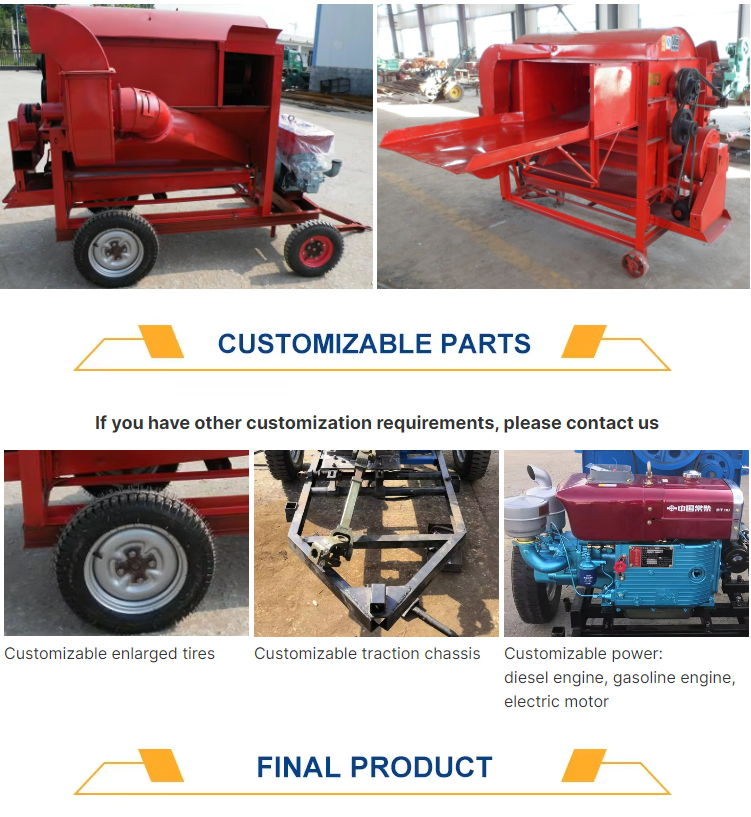

4	Customizable large wheels and traction chassis

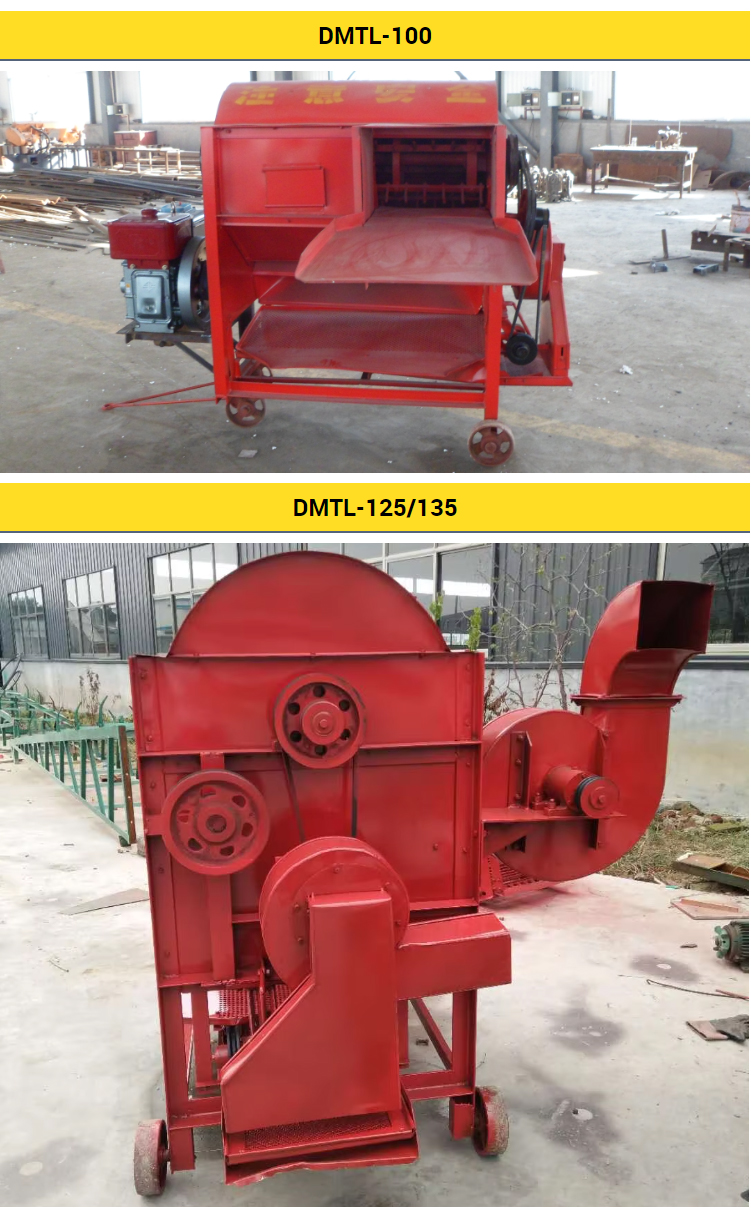

Model	DMTL-135	DMTL-125	DMTL-100	DMTL-90	DMTL-70	DMTL-50
Size (mm)	240026701530	240024901530	230020001500	340017001400	107020601340	14009001050
Power (kw)	13-15	11-13	7.5-11	7.5	7.5	5.5-7.5
Weight (kg)	500	400	350	320	200	120
Drum speed(r/min)	1000	1000	1060	550	1200	1400
Threshing gap(mm)	18-25(Adjustable)
Fan speed(r/min)	2500	2500	2500	1000-1100	2400	2500
Vibrating screen amplitude(mm)	40	40	40	30	20	14
Vibrating screen frequency(times/min)	240	240	320	340	320	580
Capacity (kg/h)	1300-1500	1000-1400	800-1200	500-700	600-800	500-600
